0950R020ON LỌC THỦY LỰC HYDAC

Model: LỌC THỦY LỰC HYDAC 0950R020ON

Giá: Liên hệ

Đặt hàng

LÕI LỌC THỦY LỰC ĐƯỜNG DẦU HỒI HYDAC 0950R SERIES
(RF, RFD, RFM, RFL, RFLD, RFM, NF, NFD)
Hydac 0950R005 0950R010 0950R020 0950R025 0950R050 0950R100 Series
ĐỘ TINH LỌC: 1 - 200 µm
ÁP SUẤT LÀM VIỆC: 20 BAR
NHIỆT ĐỘ LÀM VIỆC: 100 oC

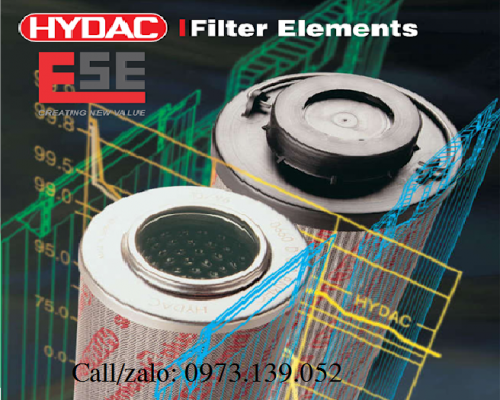

HYDAC R SERIES RETURN LINE ELEMENTS
Hydac 0950R005 0950R010 0950R020 0950R025 0950R050 0950R100 Series
R elements are used in return line filters, e.g. in the series RF, RFD, RFM, RFL, RFLD, RFM, NF, NFD.
FEATURES:
Filter ratings: 1 to 200 µm
Filter materials: glass fibre, solid plastic, wire mesh, paper, metal fleece, water-absorbent material
Absolute or nominal filtration, depending on the filter material
Permissible differential pressures: 20 bar
Operating temperature: up to 100°C
Compatible with all conventional operating media
With bypass valve (optionally without)

1264500	0950R003BN4AM
1271404	0950R003BN4AM/-KB
1271404	0950R003BN4AM/-KB
1264504	0950R003BN4AM/-V
1264504	0950R003BN4AM/-V
1268358	0950R003ECON2
1268358	0950R003ECON2
1263039	0950R003ON
1263039	0950R003ON
1263728	0950R003ON/-B6
1263728	0950R003ON/-B6
1263047	0950R003ON/-KB
1263047	0950R003ON/-KB
1318921	0950R003ON/-SFREE
1318921	0950R003ON/-SFREE
1312880	0950R003ON/-SFREE-KB
1312880	0950R003ON/-SFREE-KB
1263043	0950R003ON/-V
1263043	0950R003ON/-V
1263740	0950R003ON/-V-B6
1263740	0950R003ON/-V-B6
1263736	0950R003ON/-V-KB
1263736	0950R003ON/-V-KB

1268359	0950R005ECON2
1268359	0950R005ECON2
1263040	0950R005ON
1263040	0950R005ON
1263729	0950R005ON/-B6
1263729	0950R005ON/-B6
1263048	0950R005ON/-KB
1263048	0950R005ON/-KB
1312590	0950R005ON/-SFREE
1312590	0950R005ON/-SFREE
1305175	0950R005ON/-SFREE-KB
1305175	0950R005ON/-SFREE-KB
1263044	0950R005ON/-V
1263044	0950R005ON/-V
1263741	0950R005ON/-V-B6
1263741	0950R005ON/-V-B6
1263737	0950R005ON/-V-KB
1263737	0950R005ON/-V-KB
1317154	0950R005ON/-V-SFREE-B6
1317154	0950R005ON/-V-SFREE-B6
1306079	0950R005ON/PO/-KB
1306079	0950R005ON/PO/-KB

1264509	0950R010BN4AM
1264509	0950R010BN4AM
1264513	0950R010BN4AM/-V
1264513	0950R010BN4AM/-V
1268360	0950R010ECON2
1268360	0950R010ECON2
1276736	0950R010MM
1276736	0950R010MM
1263041	0950R010ON
1263041	0950R010ON
1263730	0950R010ON/-B6
1263730	0950R010ON/-B6
1263049	0950R010ON/-KB
1263049	0950R010ON/-KB
1305533	0950R010ON/-SFREE
1305533	0950R010ON/-SFREE
1312122	0950R010ON/-SFREE-B6
1312122	0950R010ON/-SFREE-B6
1263045	0950R010ON/-V
1263045	0950R010ON/-V
1263742	0950R010ON/-V-B6
1263742	0950R010ON/-V-B6
1263738	0950R010ON/-V-KB
1263738	0950R010ON/-V-KB
1325367	0950R010ON/-V-SFREE
1325367	0950R010ON/-V-SFREE
1281702	0950R010ON/PO
1281702	0950R010ON/PO
1267123	0950R010ON/PO/-KB
1267123	0950R010ON/PO/-KB
1280631	0950R010ON/PO/-V-KB
1280631	0950R010ON/PO/-V-KB
301579	0950R010P
301579	0950R010P
303986	0950R010P/-B6
303986	0950R010P/-B6
304324	0950R010P/-KB
304324	0950R010P/-KB
301581	0950R010P/-V
301581	0950R010P/-V
303529	0950R010P/HC
303529	0950R010P/HC
1272414	0950R010P/HC/-B6
1272414	0950R010P/HC/-B6
314202	0950R010P/HC/-KB
314202	0950R010P/HC/-KB
1262248	0950R010P/HC/-V
1262248	0950R010P/HC/-V

1268361	0950R020ECON2
1268361	0950R020ECON2
1263042	0950R020ON
1263042	0950R020ON
1263731	0950R020ON/-B6
1263731	0950R020ON/-B6
1263050	0950R020ON/-KB
1263050	0950R020ON/-KB
1263046	0950R020ON/-V
1263046	0950R020ON/-V
1263743	0950R020ON/-V-B6
1263743	0950R020ON/-V-B6
1263739	0950R020ON/-V-KB
1263739	0950R020ON/-V-KB
1323444	0950R020ON/PS
1323444	0950R020ON/PS
301580	0950R020P
301580	0950R020P
312687	0950R020P/-KB
312687	0950R020P/-KB
1262247	0950R020P/-V
1262247	0950R020P/-V
1251405	0950R020P/HC
1251405	0950R020P/HC
1262250	0950R020P/HC/-KB
1262250	0950R020P/HC/-KB
1262249	0950R020P/HC/-V
1262249	0950R020P/HC/-V

301827	0950R025W
301827	0950R025W
1250416	0950R025W/-B6
1250416	0950R025W/-B6
314694	0950R025W/-KB
314694	0950R025W/-KB
301829	0950R025W/-V
301829	0950R025W/-V
316938	0950R025W/-W
316938	0950R025W/-W
312491	0950R025W/HC
312491	0950R025W/HC
1268132	0950R025W/HC/-B6
1268132	0950R025W/HC/-B6
1262251	0950R025W/HC/-V
1262251	0950R025W/HC/-V
301490	0950R025W/HC/-W
301490	0950R025W/HC/-W
314864	0950R025W/HC/-KB
314864	0950R025W/HC/-KB

315358	0950R040AM
315358	0950R040AM
319776	0950R040AM/-V
319776	0950R040AM/-V

304479	0950R050W
304479	0950R050W
301759	0950R050W/-KB
301759	0950R050W/-KB
1309364	0950R050W/-V
1309364	0950R050W/-V
1293565	0950R050W/-V-KB
1293565	0950R050W/-V-KB
314894	0950R050W/HC
314894	0950R050W/HC
319678	0950R050W/HC/-B6
319678	0950R050W/HC/-B6
300751	0950R050W/HC/-KB
300751	0950R050W/HC/-KB
1279500	0950R050W/HC/-V
1279500	0950R050W/HC/-V
319760	0950R050W/HC/-V-B6
319760	0950R050W/HC/-V-B6
1250212	0950R050W/HC/-V-KB
1250212	0950R050W/HC/-V-KB

304897	0950R100W
304897	0950R100W
307291	0950R100W/HC
307291	0950R100W/HC
314893	0950R100W/HC/-KB
314893	0950R100W/HC/-KB
1312006	0950R100W/HC/-V-KB
1312006	0950R100W/HC/-V-KB
1260777	0950R100W/HC/-W
1260777	0950R100W/HC/-W

319738	0950R200W
319738	0950R200W
1260168	0950R200W/-V
1260168	0950R200W/-V
1285692	0950R200W/HC
1285692	0950R200W/HC
1270835	0950R200W/HC/-KB
1270835	0950R200W/HC/-KB
319256	0950R200W/HC/-W
319256	0950R200W/HC/-W
