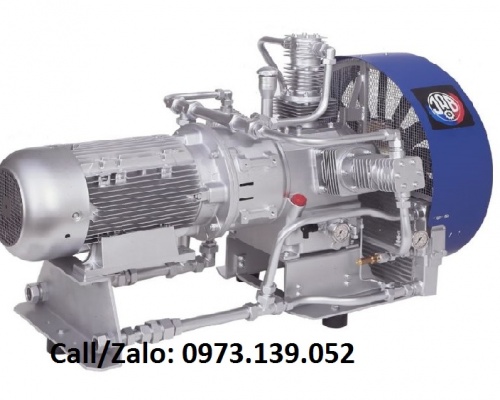

MNK - JAB TRUNG ÁP SV1000/40

Model: SV1000/40 MÁY NÉN KHÍ TRUNG ÁP

Giá: Liên hệ

Đặt hàng

Hãng sản xuất: JAB

Model máy: SV1000/40

Ứng dụng: Nén không khí
Áp lực làm việc max: 35 bar
Cấp nén: 2 cấp
Công suât: 15 kW
Lưu lượng: 950 L / phút
Vòng quay: 1500 rpm

Air-Compressor medium-pressure SV 1000/40

Description

A higher volumetric efficiency and alignment of the cylinders directly in the cooling-air flow are the pre-conditions for low condensation temperatures and therefor long service life of the valves. The generously dimensioned industrial components guarantee long inspection intervals and low maintenance costs. A special system for leakage testing of the whole machine during standstill (without running noises) simplifies the diagnosis during maintenance work.

Optional equipment:

Microfilter at outlet
Temperatur-contorl of all pressure stages
Compressor-heating
Sound insulation hood
Condensate tank for wall mounting

Compressor:

Type-tested safety valves and manometers for all pressure stages
High efficient cooling
Maintenance-free oil- and water-seperator
Energy efficient IE3 motor, direct flanged
Elastic coupling for smooth start
Manometer for all stages and oil-pressure
Oil-pressure-lubrication with oil-pressure-contorl
Oil-pressure-controlled automatic discharge
Vibration-free assembly
Electromagentic start discharge

Compressor unit:

Compressor
PLC Control
Pressure sensor for end-pressure
End-temperature-control
Flexible hoses
Ready mounted and wired on common base

Technical data

Application, medium	Luft / Air
Max. operating pressure	35 bar
Stages	2
Driving power	15 kW
Air flow	990 l/min
Drive speed	1500 rpm
Cylinder count	2
Operating temperature	5 - 40 °C
Noise level	92 dB (A)
Length	1270 mm
Width	1050 mm
Height	880 mm
Weight	365 kg
Outlet temperature	ca. 10 °C über Eingangstemperatur

Manufacturer Article No.: SV1000/40
