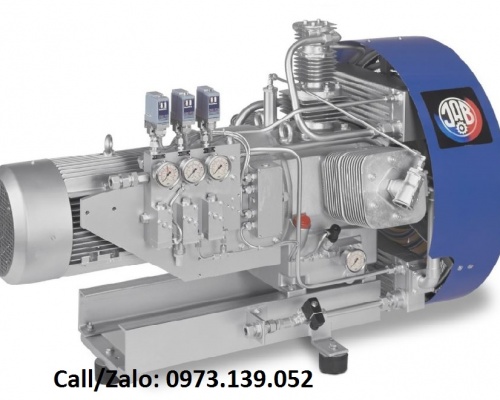

MNK- JAB TRUNG ÁP SV125/40

Model: SV125/40 MÁY NÉN KHÍ TRUNG ÁP

Giá: Liên hệ

Đặt hàng

Hãng sản xuất: JAB

Model máy: SV125/40

Ứng dụng: Nén không khí
Lưu lượng: 125 L / phút
Vòng quay: 1000 rpm

Áp lực làm việc max: 40 bar

Cấp nén: 2 cấp
Công suât: 2,2 kW

Description

A higher volumetric efficiency and alignment of the cylinders directly in the cooling-air flow are the pre-conditions for low condensation temperatures and therefor long service life of the valves. The generously dimensioned industrial components guarantee long inspection intervals and low maintenance costs. A special system for leakage testing of the whole machine during standstill (without running noises) simplifies the diagnosis during maintenance work.

Compressor unit:

Compressor
PLC Control
Pressure sensor for end-pressure
End-temperature-control
Flexible hoses
Ready mounted and wired on common base

Compressor:

Type-tested safety valves and manometers for all pressure stages
High efficient cooling
Maintenance-free oil- and water-seperator
Energy efficient IE3 motor, direct flanged
Manometer for second stage and oil-pressure
Oil-pressure-lubrication and oil-pressure-contorl
Oil-pressure-controlled automatic discharge
Vibration-free assembly

Optional equipment:

Microfilter at outlet
Temperatur-contorl of all pressure stages
Compressor-heating
Sound insulation hood
Condensate tank for wall mounting

Technical data

Application, medium	Luft / Air
Max. operating pressure	40 bar
Stages	2
Driving power	2,2 kW
Air flow	125 l/min
Drive speed	1000 rpm
Cylinder count	2
Operating temperature	5 - 40 °C
Noise level	72 dB (A)
Length	650 mm
Width	495 mm
Height	520 mm
Weight	107 kg
Outlet temperature	ca. 10 °C über Eingangstemperatur

Manufacturer Article No.: SV125/40
