2600R003ON: LỌC THỦY LỰC HYDAC

Model: LỌC THỦY LỰC HYDAC 2600R003ON

Giá: Liên hệ

Đặt hàng

LÕI LỌC THỦY LỰC ĐƯỜNG DẦU HỒI HYDAC R SERIES
(RF, RFD, RFM, RFL, RFLD, RFM, NF, NFD)
2600R003 2600R005 2600R010 2600R020 2600R050 2600R100 2600R200 Series
ĐỘ TINH LỌC: 1 - 200 µm
ÁP SUẤT LÀM VIỆC: 20 BAR
NHIỆT ĐỘ LÀM VIỆC: 100 oC

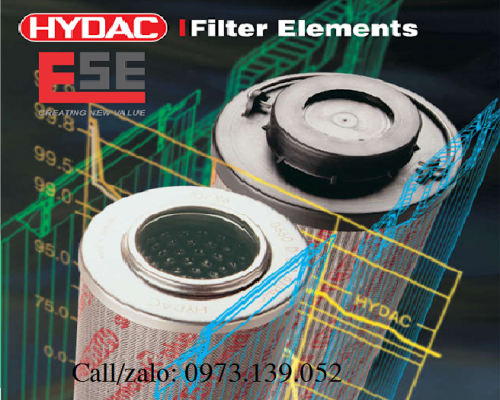

HYDAC R SERIES RETURN LINE ELEMENTS
R elements are used in return line filters, e.g. in the series RF, RFD, RFM, RFL, RFLD, RFM, NF, NFD.
2600R003 2600R005 2600R010 2600R020 2600R050 2600R100 2600R200 Series
FEATURES:
Filter ratings: 1 to 200 µm
Filter materials: glass fiber, solid plastic, wire mesh, paper, metal fleece, water-absorbent material
Absolute or nominal filtration, depending on the filter material
Permissible differential pressures: 20 bar
Operating temperature: up to 100°C
Compatible with all conventional operating media
With bypass valve (optionally without)

Manufacturer Part #:	Hydac Part #:
1264502	2600R003BN4AM
1264502	2600R003BN4AM
1271007	2600R003BN4AM/-B6
1271007	2600R003BN4AM/-B6
1268232	2600R003BN4AM/-KB
1268232	2600R003BN4AM/-KB
1264506	2600R003BN4AM/-V
1264506	2600R003BN4AM/-V
1275329	2600R003BN4AM/-V-KB
1275329	2600R003BN4AM/-V-KB
1268366	2600R003ECON2
1268366	2600R003ECON2
1263063	2600R003ON
1263063	2600R003ON
1263776	2600R003ON/-B6
1263776	2600R003ON/-B6
1263071	2600R003ON/-KB
1263071	2600R003ON/-KB
1303979	2600R003ON/-SFREE
1303979	2600R003ON/-SFREE
1300358	2600R003ON/-SFREE-B6
1300358	2600R003ON/-SFREE-B6
1302293	2600R003ON/-SFREE-KB
1302293	2600R003ON/-SFREE-KB
1263067	2600R003ON/-V
1263067	2600R003ON/-V
1263788	2600R003ON/-V-B6
1263788	2600R003ON/-V-B6
1263784	2600R003ON/-V-KB
1263784	2600R003ON/-V-KB
1315397	2600R003ON/-V-SFREE-KB
1315397	2600R003ON/-V-SFREE-KB

1275186	2600R005BN4AM
1275186	2600R005BN4AM
1293309	2600R005BN4AM/-KB
1293309	2600R005BN4AM/-KB
1302150	2600R005BN4AM/-V-KB
1302150	2600R005BN4AM/-V-KB
1268367	2600R005ECON2
1268367	2600R005ECON2
1278854	2600R005ECON2/-V
1278854	2600R005ECON2/-V
1263064	2600R005ON
1263064	2600R005ON
1263777	2600R005ON/-B6
1263777	2600R005ON/-B6
1263072	2600R005ON/-KB
1263072	2600R005ON/-KB
1298233	2600R005ON/-SFREE
1298233	2600R005ON/-SFREE
1297337	2600R005ON/-SFREE-B6
1297337	2600R005ON/-SFREE-B6
1301452	2600R005ON/-SFREE-KB
1301452	2600R005ON/-SFREE-KB
1263068	2600R005ON/-V
1263068	2600R005ON/-V
1263789	2600R005ON/-V-B6
1263789	2600R005ON/-V-B6
1263785	2600R005ON/-V-KB
1263785	2600R005ON/-V-KB
1315396	2600R005ON/-V-SFREE-KB
1315396	2600R005ON/-V-SFREE-KB
1307981	2600R005ON/PO
1307981	2600R005ON/PO
1314835	2600R005ON/PO/-KB
1314835	2600R005ON/PO/-KB
1322340	2600R005ON/PO/-V-KB
1322340	2600R005ON/PO/-V-KB

1251955	2600R010BN4AM
1251955	2600R010BN4AM
1251969	2600R010BN4AM/-B6
1251969	2600R010BN4AM/-B6
1276840	2600R010BN4AM/-KB
1276840	2600R010BN4AM/-KB
1264515	2600R010BN4AM/-V
1264515	2600R010BN4AM/-V
1287699	2600R010BN4AM/-V-KB
1287699	2600R010BN4AM/-V-KB
1310485	2600R010BN4HX
1310485	2600R010BN4HX
1311960	2600R010BN4HX/-SFREE-KB
1311960	2600R010BN4HX/-SFREE-KB
1268368	2600R010ECON2
1268368	2600R010ECON2
1274835	2600R010ECON2/-V
1274835	2600R010ECON2/-V
1276748	2600R010MM
1276748	2600R010MM
1295893	2600R010MM/-KB
1295893	2600R010MM/-KB
1276749	2600R010MM/-V
1276749	2600R010MM/-V
1263065	2600R010ON
1263065	2600R010ON
1263778	2600R010ON/-B6
1263778	2600R010ON/-B6
1263073	2600R010ON/-KB
1263073	2600R010ON/-KB
1308862	2600R010ON/-SFREE
1308862	2600R010ON/-SFREE
1313674	2600R010ON/-SFREE-B6
1313674	2600R010ON/-SFREE-B6
1263069	2600R010ON/-V
1263069	2600R010ON/-V
1263790	2600R010ON/-V-B6
1263790	2600R010ON/-V-B6
1263786	2600R010ON/-V-KB
1263786	2600R010ON/-V-KB
1283430	2600R010ON/PO
1283430	2600R010ON/PO
1268092	2600R010ON/PO/-KB
1268092	2600R010ON/PO/-KB
1280630	2600R010ON/PO/-V-KB
1280630	2600R010ON/PO/-V-KB
313466	2600R010P
313466	2600R010P
1282016	2600R010P/-KB
1282016	2600R010P/-KB
319657	2600R010P/HC
319657	2600R010P/HC
1275681	2600R010P/HC/-B6
1275681	2600R010P/HC/-B6
301503	2600R010P/HC/-KB
301503	2600R010P/HC/-KB
1307271	2600R010P/HC/-V-KB
1307271	2600R010P/HC/-V-KB

1276750	2600R015MM
1276750	2600R015MM
1298243	2600R015MM/-KB
1298243	2600R015MM/-KB

1268369	2600R020ECON2
1268369	2600R020ECON2
1263066	2600R020ON
1263066	2600R020ON
1263779	2600R020ON/-B6
1263779	2600R020ON/-B6
1263074	2600R020ON/-KB
1263074	2600R020ON/-KB
1308716	2600R020ON/-SFREE
1308716	2600R020ON/-SFREE
1319271	2600R020ON/-SFREE-KB
1319271	2600R020ON/-SFREE-KB
1263070	2600R020ON/-V
1263070	2600R020ON/-V
1263791	2600R020ON/-V-B6
1263791	2600R020ON/-V-B6
1263787	2600R020ON/-V-KB
1263787	2600R020ON/-V-KB
1314997	2600R020ON/PO
1314997	2600R020ON/PO
1294414	2600R020ON/PO/-KB
1294414	2600R020ON/PO/-KB
313467	2600R020P
313467	2600R020P
302791	2600R020P/-KB
302791	2600R020P/-KB
314628	2600R020P/HC
314628	2600R020P/HC
1294216	2600R020P/HC/-B6
1294216	2600R020P/HC/-B6
301504	2600R020P/HC/-KB
301504	2600R020P/HC/-KB

313468	2600R025W
313468	2600R025W
1293312	2600R025W/-B6
1293312	2600R025W/-B6
316395	2600R025W/-KB
316395	2600R025W/-KB
1252539	2600R025W/-V
1252539	2600R025W/-V
301506	2600R025W/-W
301506	2600R025W/-W
304683	2600R025W/HC
304683	2600R025W/HC
1280841	2600R025W/HC/-B6
1280841	2600R025W/HC/-B6
304515	2600R025W/HC/-KB
304515	2600R025W/HC/-KB
1251026	2600R025W/HC/-V
1251026	2600R025W/HC/-V
301507	2600R025W/HC/-W
301507	2600R025W/HC/-W

316102	2600R040AM
316102	2600R040AM
306899	2600R040AM/-KB
306899	2600R040AM/-KB
1260470	2600R040AM/-V
1260470	2600R040AM/-V
1275093	2600R040AM/-V-KB
1275093	2600R040AM/-V-KB

303231	2600R050W
303231	2600R050W
1294534	2600R050W/-KB
1294534	2600R050W/-KB
1322955	2600R050W/-V
1322955	2600R050W/-V
1308526	2600R050W/-W
1308526	2600R050W/-W
318779	2600R050W/HC
318779	2600R050W/HC
1260153	2600R050W/HC/-B6
1260153	2600R050W/HC/-B6
317999	2600R050W/HC/-KB
317999	2600R050W/HC/-KB
1261427	2600R050W/HC/-V
1261427	2600R050W/HC/-V
1274362	2600R050W/HC/-V-B6
1274362	2600R050W/HC/-V-B6
1274711	2600R050W/HC/-V-KB
1274711	2600R050W/HC/-V-KB
1324339	2600R050W/HC/-W-V-B6
1324339	2600R050W/HC/-W-V-B6

317310	2600R100W
317310	2600R100W
1250422	2600R100W/-KB
1250422	2600R100W/-KB
1308770	2600R100W/-V
1308770	2600R100W/-V
1262776	2600R100W/-W
1262776	2600R100W/-W
1268126	2600R100W/-W-KB
1268126	2600R100W/-W-KB
316066	2600R100W/HC
316066	2600R100W/HC
1287927	2600R100W/HC/-B6
1287927	2600R100W/HC/-B6
314150	2600R100W/HC/-KB
314150	2600R100W/HC/-KB
1277414	2600R100W/HC/-V
1277414	2600R100W/HC/-V

317739	2600R200W
317739	2600R200W
1272085	2600R200W/-KB
1272085	2600R200W/-KB
1286886	2600R200W/HC
1286886	2600R200W/HC
1266092	2600R200W/HC/-B6
1266092	2600R200W/HC/-B6
1274185	2600R200W/HC/-KB
1274185	2600R200W/HC/-KB

Để biết thêm thông tin chi tiết về sản phẩm: Kích thước, hình ảnh thực tế, giá và tồn kho
Vui lòng liên hệ: LÊ QUỐC VƯƠNG ( Zalo : 0973139052)
Công ty TNHH Máy và Thiết Bị Khí Nén MPT
Hotline: 0946243248
Email: vuong.le@congtympt.com
Website: http://locmaynenkhi.com http://congtympt.com.vn
