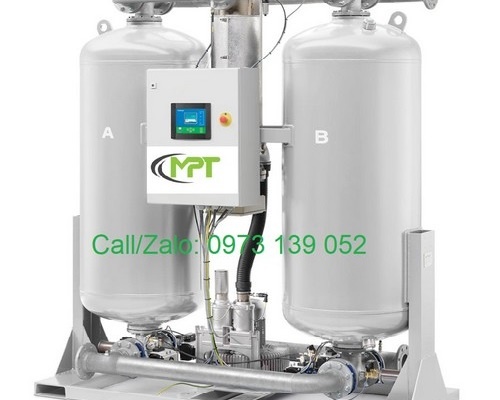

MẤY SẤY KHÍ DESICCANT (HEATLESS TYPE) HAD-150:
LƯU LƯỢNG THỂ TÍCH: 1 ~ 200 m3/min
NHIỆT ĐỘ ĐIỂM SƯƠNG: -20 ~ -40 ℃(molecular sieves -70 ℃ accessible）
ÁP SUẤT: 0.45 - 1Mpa
ĐIỆN ÁP: 220V/50Hz/1PH
THÔNG TIN CƠ BẢN VÀ MODEL CHI TIẾT DESICCANT AIR DRYER HEATLESS TYPE
Rated volume
1 - 200m3/min
Pressure drop
≤ 0.021Mpa
Inlet pressure
0.45 - 1.0Mpa( rated 0.7Mpa)
Regeneration mode
Normal temperature regeneration
Inlet temperature
≤ 40 ℃ ( rated 38 ℃，saturated )
Working mode
Two tower 4min or 10min automatically switching, continuous work
Inlet oil content
≦ 0.08ppm(0.1mg/m3)
Cycle 4-10min may adjustment
Gas containing dust
≤ 60μm
Installation
Indoor
Average regenerated flow
10 ﹪ - 22 ﹪rated treatment capacity
power
220V/50Hz /1PH
Adsorbent
Active alumina （ Higher requirements with molecular sieves ）
Pressure dew point
-20~-40 ℃ （molecular sieves -70 ℃ accessible）
Model
Rated processing capacity Nm3/min
Dimension
L*W*H mm
Inlet and outlet pipe size
Adsorbent filling amount
KG
Muffler interface
Net weight
HAD-001
1.2
825*460*1152
Rc1
25
½”
105
HAD -002
2.4
50
135
HAD -003
3.2
825*460*1502
75
1”
187
HAD -004
5.0
825*460*1952
Rc-1/2
125
238
HAD -007
8.5
930*490*1780
175
292
HAD -010
11
1030*580*2230
Rc2
250
1.5”
466
HAD -013
13.5
1030*580*2030
300
650
HAD -015
17
1220*650*2030
PN1.0 DN65 Flange
365
720
HAD -020
23
1220*650*2238
PN1.0 DN80 Flange
450
2”
798
HAD -025
27
1220*650*2740
575
955
HAD -030
33
1450*1400*2740
690
1278
HAD -040
42
1650*1400*2850
920
DN65
1624
HAD -050
55
1850*1600*3020
PN1.0 DN100 Flange
1150
2242
HAD -060
65
1950*1800*3106
PN1.0 DN100Flange
1380
2652
HAD -080
85
2420*1200*3253
PN1.0 DN125Flange
1850
DN80
3518
HAD -100
110
2700*1290*3414
PN1.0 DN125 Flange
2500
4584
HAD -150
165
2860*1390*3464
PN1.0 DN150 Flange
3500
DN100
5231
HAD -200
220
3570*1650*3728
PN1.0 DN200Flange
4600
8489
