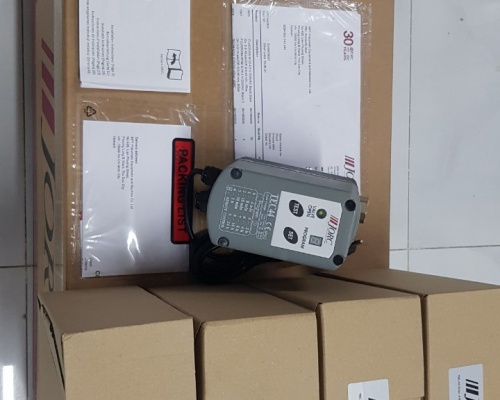

The TEC-44 is a microprocessor operated ball valve, designed to remove condensate from deliquescent dryers, rusty old tanks, vessels and refrigerated dryers.
The TEC-44 is a powerful timer controlled motorized ball valve, designed to remove condensate from deliquescent dryers, tanks, vessels and refrigerated dryers.
The TEC-44 is designed to remove heavy contaminated condensate up to pressure ratings of 40 bar. This condensate drain can not be blocked and is applied where all else fails. Draining applications with a high level of contamination (rust, scale etc.) require the TEC-44.
The TEC-44 is impossible to block due to its powerful ball valve rotation and large orifice.
SPECIFICATIONS
Maximum compressor capacity Any size
Pressure range 0 – 40 bar
Supply voltage options 24VDC, 115VAC and 230VAC 50/60Hz. (please indicate)
Medium temperature 1 – 60 °C
Ambient temperature 1 – 55 °C
Timer cycle range (On / OFF) 7 seconds to 15 minutes ON / 4 minutes to 24 hours OFF
Actuator PCB SMD technology, ensuring consistency in production
Timer cycle indication Bright LED illumination, LED program indicator
TEST feature Yes
Valve type 2/2 way, motorised ball valve
Valve orifice 12 mm
Valve seals FPM and Teflon
Inlet/outlet connections 1/2″ (BSP or NPT)
Inlet connection height 1.0 cm
Serviceable valve Yes
Valve housing material Brass nickel plated, ballvalve stainless steel
Power connection Cable and plug
Environmental protection IP65 (NEMA4)
Remote switch option Yes
