THIẾT BỊ THU GOM DẦU SEPREMIUM 20


Model: SEPREMIUM 20
Giá: Liên hệ

Đặt hàng
 Đặt hàng với chúng tôi

Qúy khách vui lòng điền đầy đủ thông tin để chúng tôi có thể hỗ trợ sớm nhất cho quý khách!

Mã sản phẩm : SEPREMIUM 20

Xuất xứ : JORC - HÀ LAN

Bảo hành : 06 tháng

mã số SEPREMIUM 20

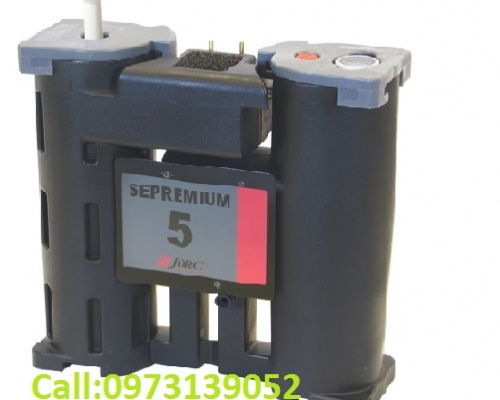

THIẾT BỊ THU GOM DẦU SEPREMIUM 20

The SEPREMIUM range of oil/water separators separates oil from condensate, generated by compressed air systems.

The SEPREMIUM achieves efficient separation of oil from condensate by means of directing the condensate through various separation stages. The SEPREMIUM achieves efficient separation of oil from condensate by means of directing the condensate through various separation stages.
As condensate flows in to the SEPREMIUM, the oil is filtered out through various filtration elements.

The first oil adsorbing element has a clever saturation indicating feature, offering you a visual operating status of the separator at a distance. The elements are designed to combine various types of adsorption technologies to achieve less than 10 ppm oil residue values at the output stage.

Final separation stage includes specially selected activated carbon to polish out the remaining contaminants.

SPECIFICATIONS

MAX. COMPRESSOR CAPACITY 20 m³/min. (750 CFM)
MAX. OIL ADSORPTION IN THE ELEMENTS 15 litres
HIGH PERFORMANCE WHITE ELEMENT 2
ACTIVATED CARBON ELEMENT 1
INLET CONNECTION 1/2″ (2 off)
OUTLET CONNECTION 1″
TEST VALVE Yes
HOUSING MATERIAL PE
HOUSING COLOUR Black
LID COLOUR Grey
ALARM INDICATOR Yes
ELEMENT LIFE INDICATOR Yes
SERVICE DRAIN FOR SECTIONAL DRAINING Yes (2 off)
TEST KIT INCLUDED Yes
TARGET OIL RESIDUE OUTPUT VALUE <10 ppm
INLET AND OUTLET HOSE PIPE CONNECTORS Included
MINERAL LUBRICANTS Yes
SYNTHETIC LUBRICANTS Yes
STABILE CONDENSATE EMULSIONS Special elements required
POLYGLYCOL Special elements required
DIBT Yes



Để biết thêm thông tin chi tiết về sản phẩm: Kích thước, hình ảnh thực tế, giá và tồn kho

Vui lòng liên hệ: LÊ QUỐC VƯƠNG ( Zalo : 0973139052)
Công ty TNHH Máy và Thiết Bị Khí Nén MPT
Hotline: 0946243248
Email: vuong.le@congtympt.com
Website: http://www.congtympt.com.vn; http://www.locmaynenkhi.com
